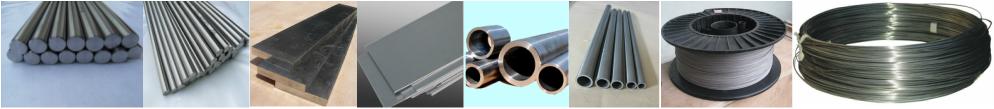

Ti alloy bar/plate/tube/wire

Matsurf Technologies Inc supplies high quality Gr1, Gr2, Gr3, Gr4, Gr5, Gr5ELI，Ti-6Al-7Nb, and Nitinol (TiNi) shape memory Ti alloy bar/rod, plate, tube, and wires for medical and other industries application.

Electrode/anode

Matsurf Technologies Inc manufactures high quality electrode / anode for waste water treatment, Cl free swimming pool water treatment, cathodic protection, fuel cells, electroplating, industrial electrolysis, and other applications.

Platinum coated (Platinized) titanium anode: Pt coating thickness >1um

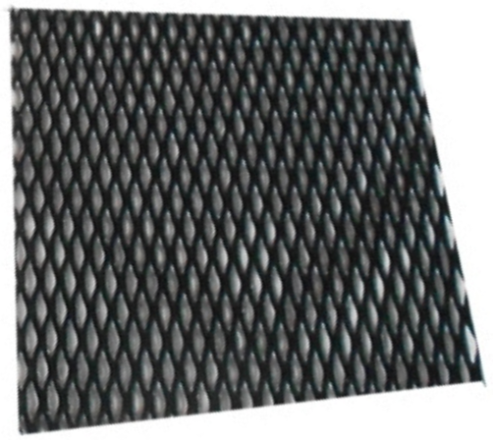

PbO2 coated titanium anode: PbO2 coating thickness >0.6mm
Ir/IrO2 coated titanium anode
RuIr coated titanium anode
316 stainless steel anode/electrode

Medical Ti alloy bar/rod

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr5ELI，Ti-6Al-7Nb
Size:(Φ4-Φ70)*(2500-3000)mm
Standard:ISO5832-2, ISO5832-3, ISO5832-11, ASTM F67, ASTM F136, ASTM F1295
Application: High strength high performance titanium bar for medical/dental instruments and implants, i.e. bone joint, bone screw, dental implants.

Medical Ti alloy plate/sheet

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr5ELI, Ti-6Al-7Nb
Size: (δ0.3-δ6.5)*(200-400)*(1000-1300)mm
Tolerance: （+0，+0.2）mm
Standard: ISO5832-2, ISO5832-3, ISO5832-11, ASTM F67, ASTM F136, ASTM F1295
Application: Titanium plate for internal bone fixation, medical instrument, and medical equipment.

Medical Ti alloy wire

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr5ELI
Size:(Φ0.8-Φ4.0)*(2000-3000)mm
Standard: ISO5832-2, ISO5832-3, ASTM F67, ASTM F136
Application: Kirschner wires and other implants.

Industrial Ti alloy bar/rod

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr9, Gr23
Size: (Φ4-Φ120)*(2500-3000)mm
Standard: ASTM B348
Application: Industrial aviation, salt-making, petrochemical, metallurgy, electronics ,chemical,sea water desalination, salt industry，air space, and other industries.

Industrial Ti alloy plate/sheet

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr9, Gr23
Size: (δ0.3-δ25)*(200-400)*(1000-1300)mm
Tolerance:（+0，+0.3）mm
Standard: ASTM B265
Application: plate heat exchanger，salt industry，chemical industry，petrochemical industry，air space, machining field, desalination of sea water，etc.

Industrial Ti alloy tube/pipe

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr9, Gr23
Size: 8-60*0.5-10*9000mm
Standard: ASTM B338
Application: Heat exchanger, condenser, environmental protection equipment ,cooling pipe，electroplating equipment ，precision instrument,etc.

Industrial titanium wire

Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr9, Gr23
Size: 0.3~5.0*Lmm
Standard: ASTM B863
Application:Industrial aviation,salt-making,petrochemical,metallurgy,electronics ,chemical,etc.

Shape memory Nitinol (TiNi) alloy bar, plate, wire.

Material: TiNi alloy
Phase transformation temperature: -10 °C to 100 °C
Bar: 6-100 mm diameter.
Plate: 0.1-10 mm thick.
